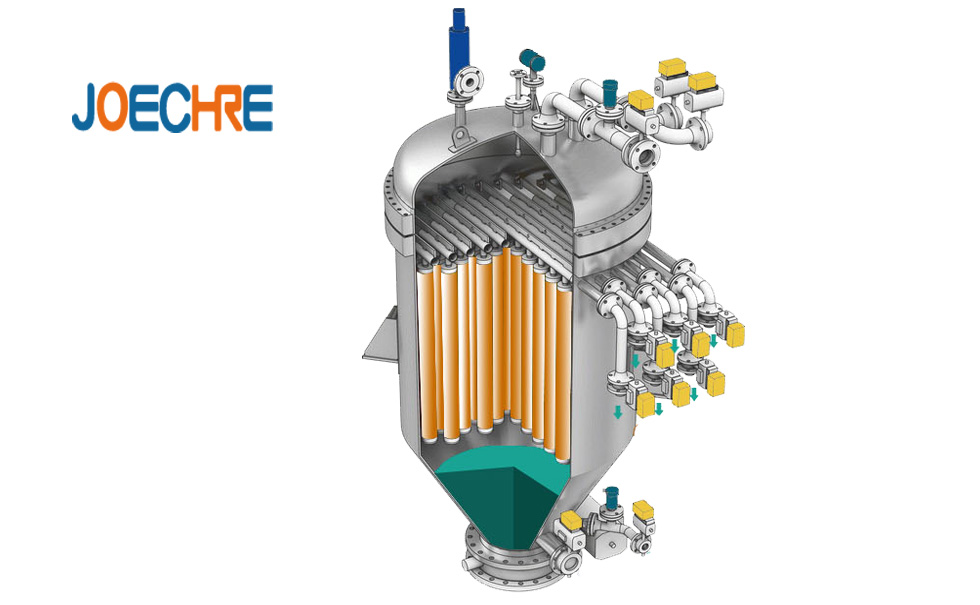

Product Brief：The pressure candle filter features pre-coat, spray rinse residual liquid treatment, filter cake layer filtration, and material thickening. It is a fully enclosed, fully automatic filter that can operate in multiple modes.
Filter material：SS 304、SS 316L
Micron rating：0.22-100 μm
Slag discharge valve：Soft seal or hard seal butterfly valve
Design pressure：0.6MPa/1.0MPa/1.6MPa/2.0MPa
Max. operating temperature：300℃

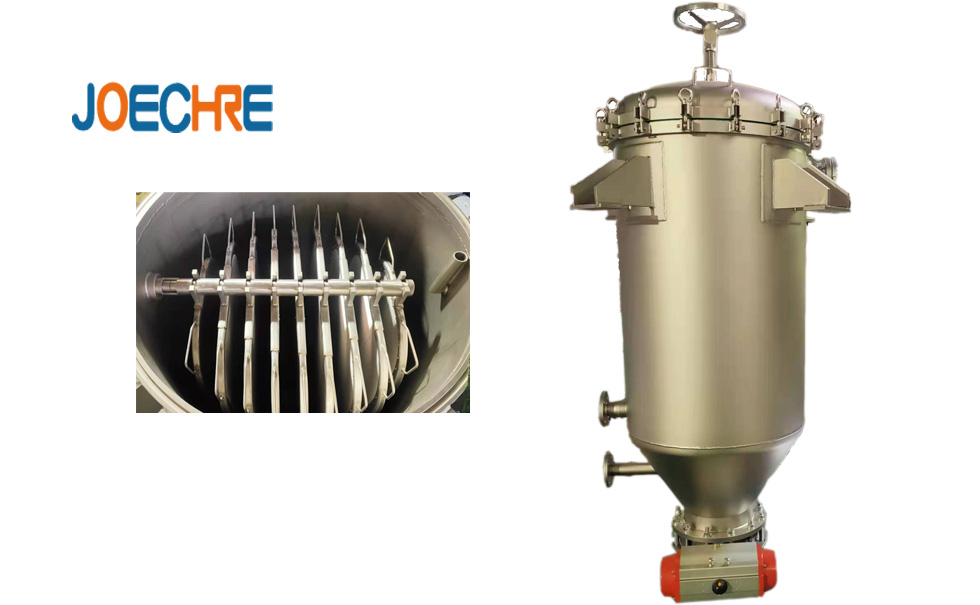

Product Brief：The pressure leaf filter belongs to the leaf filter category. It is a highly efficient, energy-saving, and enclosed precision clarification and filtration equipment.
Filter material：SS 304、SS 316L
Filter Area：2-200㎡
Micron rating：1 μm
Slag discharge valve：Soft seal or hard seal butterfly valve
Design pressure：0.6MPa/1.0MPa/1.6MPa/2.0MPa
Max. operating temperature：300℃

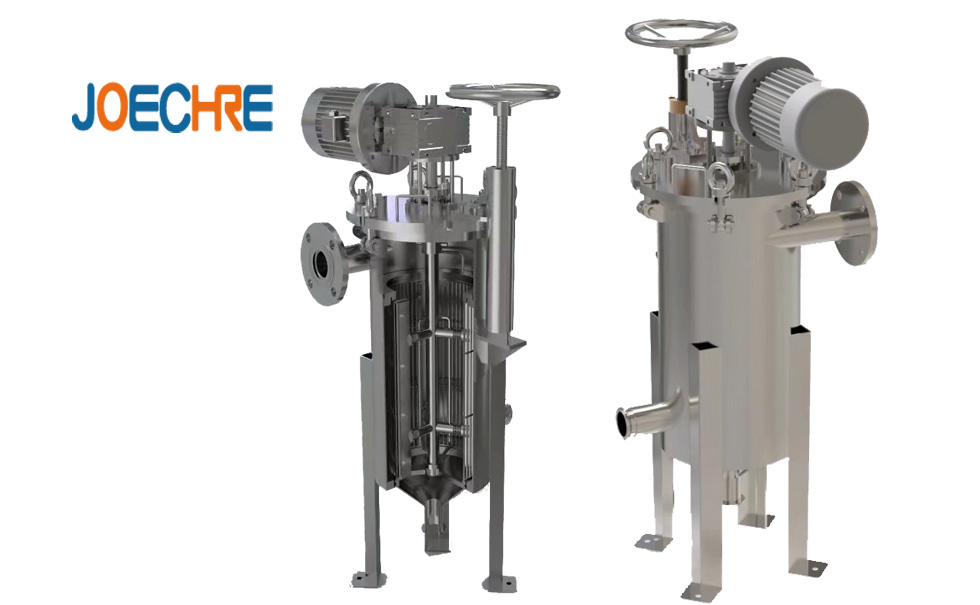

Product Brief：The high-efficiency scraper-type self-cleaning filter automatically removes particulate impurities from the outer surface of the filter element via mechanical scraping, enabling continuous online filtration.
Filter material：SS 304、SS 316L
Filter media：V-SLOT slotted metal element
Micron rating：25~1500 μm
Design pressure：1.0MPa/1.6MPa/2.0MPa
Max. operating temperature：200℃
scraper method：Inner scraper, outer scraper

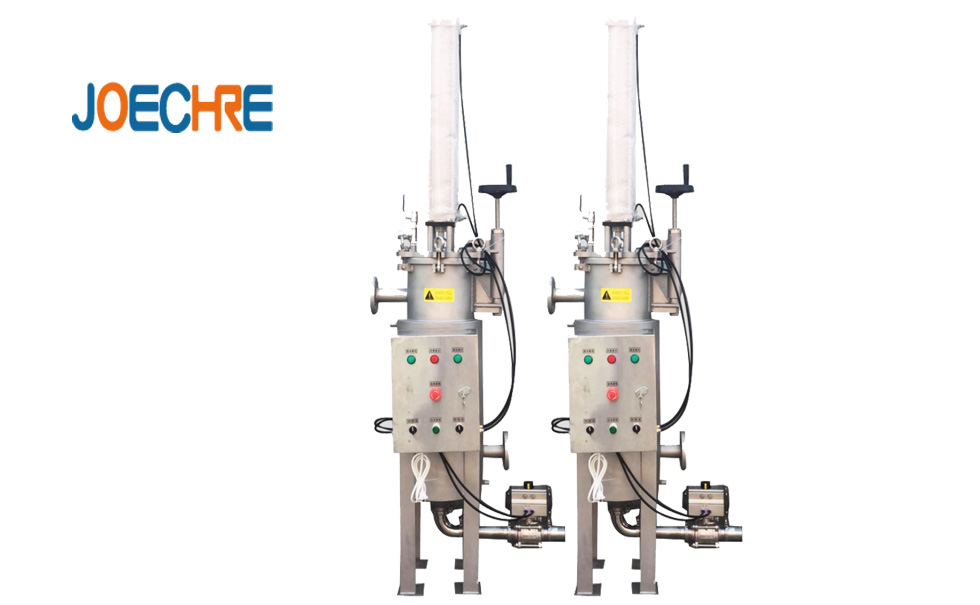

Product Brief：JQD Series Self-cleaning filter is a new high-efficiency self-cleaning filter that automatically removes particulate impurities from the inner surface of the filter element via mechanical scraping, enabling continuous online filtration.
Filter material：SS 304、SS 316L
Filter media：V-SLOT slotted metal element
Micron rating：25~1500 μm
Design pressure：1.0MPa/1.6MPa/2.0MPa
Max. operating temperature200℃
scraper method：internal scraper

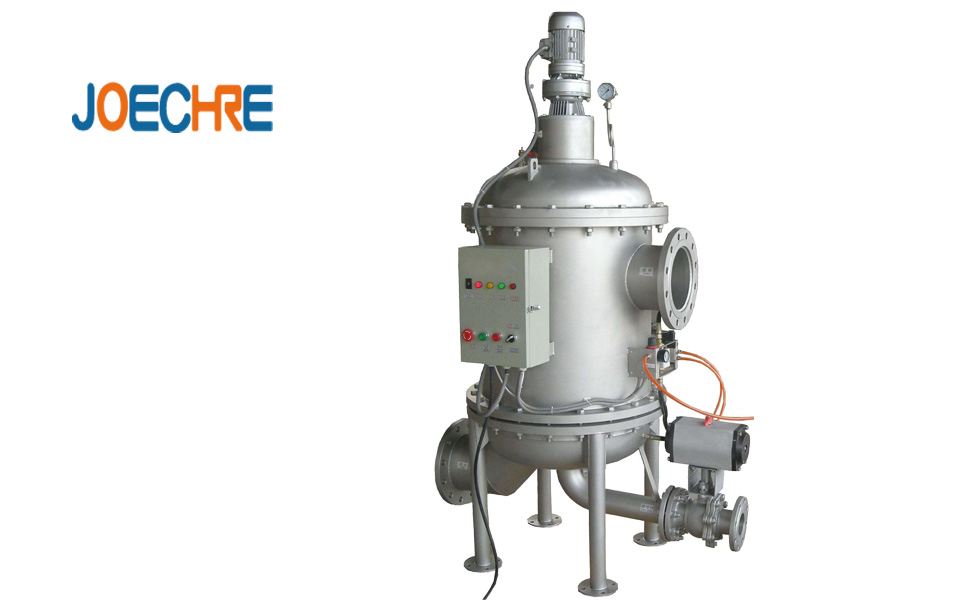

Product Brief：The automatic backwashing filter series is designed to remove particulate impurities from high-flow, high-velocity and low-viscosity fluids.
Filter material：SS 304、SS 316L
Filter media：V-SLOT slotted metal element
Micron rating：25~2000 μm
Design pressure：1.0MPa/1.6MPa/2.0MPa
Max. operating temperature100℃
flushing method：backwash

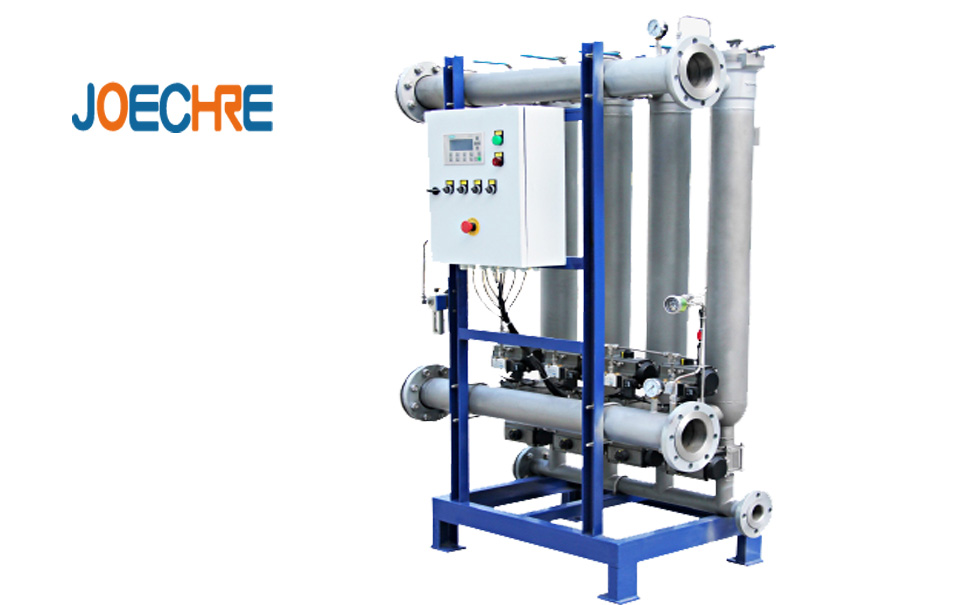

Product Brief：Designed based on modular concept, the tubular backwashing Filter assembles multiple standard filter units into an automatic filtration system featuring high safety factor.
Filter material：SS 304、SS 316L
Filter media：V-SLOT slotted metal element
Micron rating：25~2000 μm
Design pressure：1.0MPa/1.6MPa/2.0MPa
Max. operating temperature：100℃
flushing method：backwash
