Low-flow Multi-Cartridge Filter Housings

Introduction
Also known as stainless steel precision filter or cartridge filter, the flanged small flow security filter consists of filter housing and filter cartridges, available in single-cartridge or multi-cartridge configurations. Cartridge material and specifications can be customized according to customer requirements.
This filter supports various cartridges ranging from 10 inches to 40 inches, including PP melt-blown, pleated, wire wound and activated carbon cartridges.
Commonly installed before pressure vessels to remove fine particles above 1 μm and satisfy inflow requirements of subsequent processes, it can also be arranged at the tail of water treatment systems to avoid fine particles mixing into finished water. Most housings are made of stainless steel with built-in filter cartridges such as PP cotton. Installed after multimedia pre-filtration and ahead of RO, UF and other membrane equipment, it intercepts residual fine quartz sand, activated carbon granules and other contaminants from pre-treatment to guarantee filtration accuracy and protect membrane elements against damage by large particles. Available cartridge precision ranges from 0.5 μm to 100 μm; proper precision is selected based on working conditions to ensure outlet water quality and safe operation of downstream membranes.
Features
1.Flanged body with eye-bolt quick opening design, featuring high structural strength, reliable sealing and convenient opening & maintenance.
2.Multiple inlet & outlet connection layouts optional as required: side-in side-out, side-in bottom-out, with standard flange or threaded port connections.
3.Compatible with PP melt-blown, wire wound, microporous pleated and other types of filter cartridges to meet diverse filtration demands.
4.High filtration precision with uniform cartridge pore size, outstanding mechanical strength and high temperature resistance to prevent cartridge deformation.
5.Compact footprint, large effective filtration area, low flow resistance and long service life.
6.Cost-effective product with low operating cost, easy cleaning and replaceable cartridges.
Principle
The filter housing is manufactured from premium stainless steel, while cartridges adopt polypropylene melt-blown filter media. Under hydraulic pressure, raw liquid passes through filter medium; impurities are trapped on the filter material and clean filtrate flows through the medium to effectively eliminate sediments, suspended solids and bacteria for water purification.
Application
1.Security and terminal filtration for NF, UF, RO, EDI and other membrane systems;
2.Filtration of pharmaceutical injections, large-volume infusions, eye drops and herbal liquid; extraction, purification and concentration of biological products;
3.Pre-filtration and terminal filtration of high-purity water for electronics, microelectronics and semiconductor industries;
4.Filtration of oilfield reinjection water, boiler feed water, chemical reagents, organic liquids, high-purity chemicals and pesticides;
5.Filtration of purified drinking water, mineral water, fruit juice, tea and health beverages;
6.Clarification and sterile filtration for liquor, wine, beer, rice wine and fruit wines; pasteurization replacement for draft beer sterilization;
7.Pre-treatment and security filtration for industrial & domestic wastewater and reclaimed water recycling;
8.Bioengineering, oil refining, textile printing & dyeing water/wastewater treatment and laboratory experimental filtration.
Specification Parameters

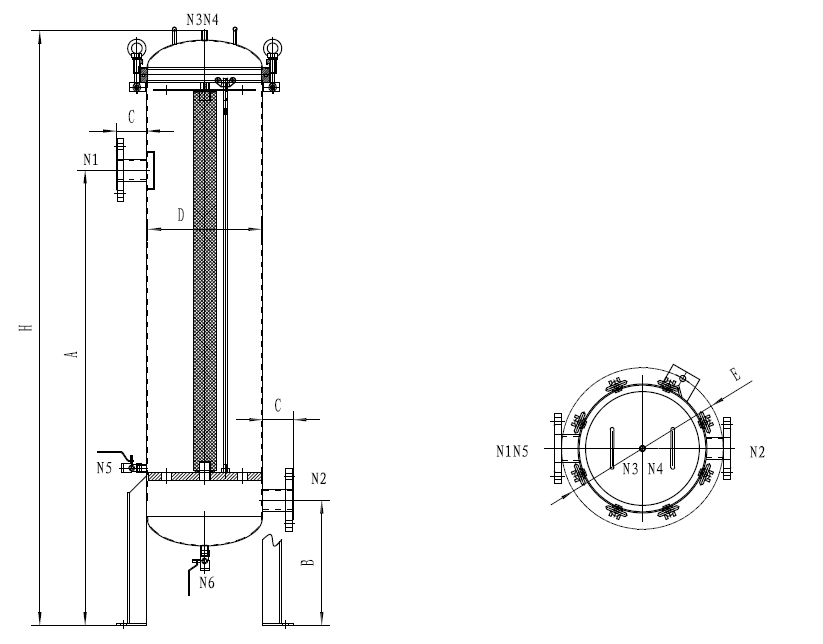

Model	Cartridge Qty	Cartridge Length	Shell Dia.D	Inlet Height A	Outlet Height B	Pipe Extension C	Overall Height H	Inlet/Outlet N1/N2	Drain/Vent N5/N6	Gauge Port N3/N4	Reference Flow(m³/H)
JQB3-20″	3	20"	Ø200	600	275	60	980	DN25	G1/2"	G1/4"	3
JQB5-20″	5	20"	Ø200	600	275	60	980	DN32	G1/2"	G1/4"	5
JQB7-40″	7	40"	Ø250	1200	300	80	1520	DN40	G1/2"	G1/4"	14
JQB9-40″	9	40"	Ø300	1200	330	80	1570	DN50	G1/2"	G1/4"	18
JQB12-40″	12	40"	Ø300	1200	330	80	1570	DN50	G1/2"	G1/4"	24

Data based on PP melt-blown cartridges. Specifications subject to technical upgrade without prior notice; actual parameters prevail upon order confirmation.

Item	Parameter
Filtration Precision	0.1~200μm
Design Pressure	0.6~1.6MPa
Max Working Temperature	0~100℃ (depends on seal and cartridge material)
Applicable Cartridges	Flat end, threaded, 222/226 bayonet cartridges
Max Allowable Differential Pressure	2.4 bar
Replacement Differential Pressure	1.0 bar
Housing Material	SS304, SS316L, Carbon Steel
Seal Material	Standard NBR; optional Silicone, FKM
Surface Treatment	Sandblasting, Polishing
