JQA Single Bag Filter Housings

Introduction
The JQA Single Bag Filter Housings adopts a top-inlet, bottom-outlet filtration method, featuring integral casting, compact structure, and durable design. The filter top cover, fastened by bolts and integrally cast, can withstand higher pressure. The top cover directly seals and presses against the filter bag, providing better sealing performance with absolutely no bypass leakage. Since the liquid medium enters the filter from the top and flows downward, the liquid is evenly distributed across the entire filtration surface of the filter bag, keeping the fluid distribution across the entire layer basically constant. This minimizes the negative impact of turbulence on the filter bag, resulting in good filtration efficiency and long service life.
Features
Integral casting, compact structure, durable design
Top cover directly seals and presses against the filter bag with double O-ring seal, absolutely no bypass leakage
Top cover opens and closes quickly and easily, adaptable to different opening directions
Filter bag replacement is safe and convenient; filter legs are adjustable
Filtrate flows in from the top cover, reducing turbulence, improving filter bag efficiency and service life
Working Principle
Material flows from the bag filter inlet into the filter bag. Particles larger than the filter bag's pore size are trapped on the inner surface or within the filter bag. Purified liquid passes through the filter bag from inside to outside and flows out from the bag filter outlet.
Applicable Industries
Water treatment, papermaking, fine chemicals, automotive industry, machining, petrochemical, coatings, food & beverage, electronics, etc.
Applicable Liquid Types: Wide applicability, various liquids containing trace impurities
Main Filtration Function: Remove particles of various sizes, purify liquids, protect key equipment
Filtration Type: Particulate filtration, manual periodic filter bag replacement
Parameters

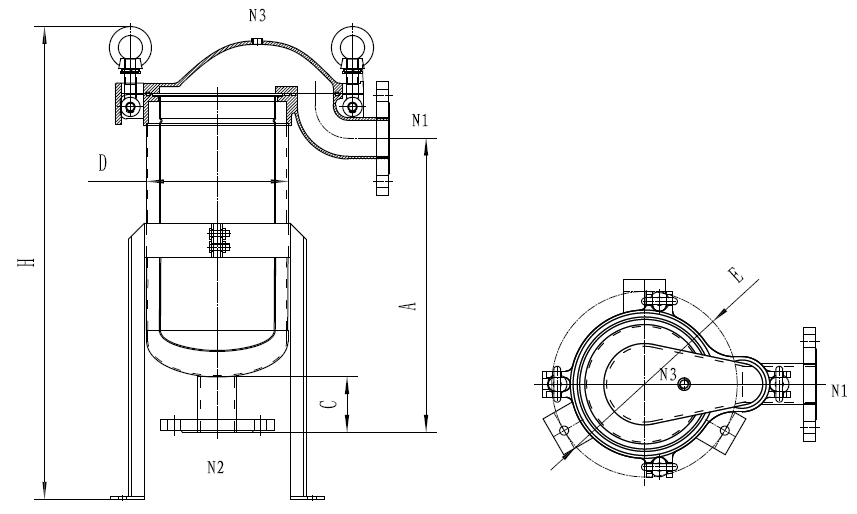

Model	Body Dia D	Inlet Height A	Inlet/Outlet Pipe Length C	Total Length H mm	Inlet/Outlet	Pressure Gauge Port	Installation Dim E	Ref. Flow	Bag Size mm	Filtration Area ㎡
					N1/N2	N3/N4		(m3/H)
JQA-1	Ø219	430	80	750	DN50	G1/4"	Ø295	15	180*430	0.25
JQA-2	Ø219	780	80	1100	DN50	G1/4"	Ø295	30	180*810	0.5
JQA-3	Ø114	220	/	580	G1"螺纹	G1/4"	Ø185	6	105*230	0.08
JQA-4	Ø114	360	/	720	G1"螺纹	G1/4"	Ø185	12	105*380	0.16

Dimensions are approximate values for reference only. Precise dimensions can be provided upon request during installation.


Filtration Precision μm	0.5–1700μm (depends on filter bag)
Design Pressure	0.6–1.6 MPa
Max Design Temperature	0–100°C (depends on seal & bag material)
Max Pressure Drop	2.4 bar
Replacement Pressure Drop	1.0 bar
Housing Material	304, 316L, Carbon Steel
Seal Material	NBR (standard), Silicone, FKM
Surface Treatment	Sandblasting, Polishing
