JQC Single Bag Filter Housings

Introduction
The JQC Single Bag Filter Housings filter is an economical single-bag filter with a simple structure, easy to use and maintain. It mainly consists of the filter housing, filter cover, and filter basket. The side-inlet design allows the cover to be opened without shutting off the pipeline, making bag replacement more convenient and fast. With good sealing performance and a low probability of bag side leakage, it is widely used in industrial filtration such as water treatment.
Features
1.Simple and robust structure, economical and easy to maintain
2.Integrated bag support structure inside, smooth inner wall for easy cleaning
3.Side overflow outlet to prevent liquid splashing
4.Lifting ring bolt lock structure for easy opening and closing of the top cover
5.Wide application range, flexible use, and diverse installation methods
Working Principle
The material flows from the inlet into the filter bag. Particles larger than the bag's pore size are retained on the inner surface or within the bag. The purified liquid passes through the bag from inside to outside and exits through the outlet of the bag filter.
Application Industries
Applicable industries: Water treatment, papermaking, fine chemicals, automotive, machining, petrochemical, coatings, food & beverage, electronics, etc.
Applicable liquid types: Wide applicability, various liquids containing trace impurities
Main filtration function: Remove particles of various sizes, purify liquids, protect key equipment
Filtration type: Particle filtration, manual periodic bag replacement
Parameters

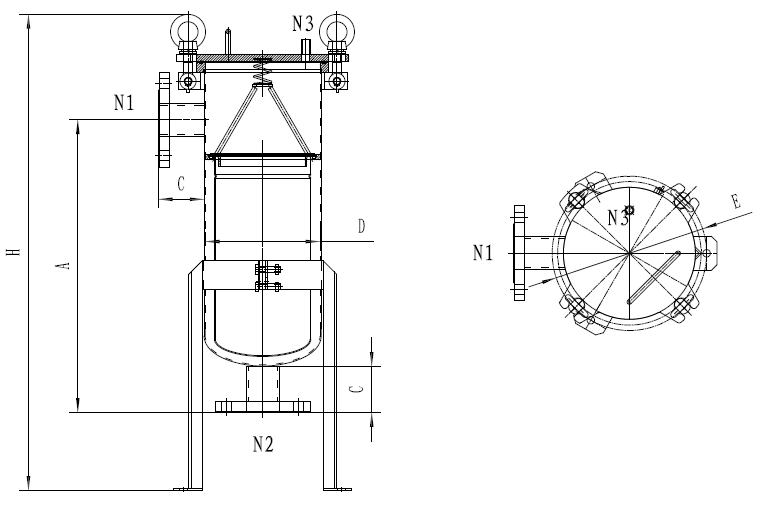

Model	Body Dia. D	Inlet Height A	Inlet/Outlet Pipe Length C	Total Length H (mm)	Inlet/Outlet N1/N2	Pressure Gauge Port N3/N4	Installation Size E	Reference Flow (m³/h)	Bag Size (mm)	Filtration Area (m²)
JQC-1	Ø200	510	80	780	DN50	G1/4"	Ø280	15	180×430	0.25
JQC-2	Ø200	880	80	1200	DN50	G1/4"	Ø280	30	180×810	0.5
JQC-3	Ø133	300	/	600	G1" Thread	G1/4"	Ø205	6	105×230	0.08
JQC-4	Ø133	450	/	750	G1" Thread	G1/4"	Ø205	12	105×380	0.16

Dimensions are approximate values for reference only. Precise dimensions can be provided upon request during installation.


Parameter	Value
Filtration Accuracy	0.5–1700 μm (depending on bag grade)
Design Pressure	0.6–1.6 MPa
Max. Design Temperature	0–100°C (depending on seal & bag material)
Max. Pressure Drop	2.4 bar
Replacement Pressure Drop	1.0 bar
Housing Material	304, 316L, Carbon Steel
Seal Material	NBR (standard), Silicone, FKM
Surface Treatment	Sandblasting, Polishing
