JQDB-1 Multi- bag filter housing

Introduction
The JQDB-1 Multi- bag filter housing is made of stainless steel material, hence also known as stainless steel multi-bag filter. It is a novel-structured, compact, easy-to-operate, energy-saving, high-efficiency, sealed working filter suitable for large flow filtration, capable of accommodating more impurities, and ideal for occasions where filter bags need to be replaced after a longer period of use. The maximum single-unit flow rate is 60–960 m³/h, greatly improving production efficiency. The lifting bolt swing arm quick-open design allows rapid and reliable filter bag replacement, effectively reducing production interruption caused by element replacement, with convenient daily maintenance.
Features
Large dirt-holding capacity, no need for frequent filter bag replacement
Swing arm design on the filter top cover for easy and quick filter bag replacement
Materials can be selected as SS304, 316L, Carbon Steel, 2205, 2507, etc., according to the processed material and environment
Each filter bag is designed with an individual locking device to ensure perfect sealing between the filter bag and the filter housing
Multiple filters can be connected in parallel or in series, with modular combination to achieve high flow rate and enable non-stop filter bag replacement
Working Principle
The JQDB-1 Multi- bag filter housing is a positive-pressure filtration device, mainly composed of the filter cylinder, filter cylinder cover, quick-opening mechanism, and stainless steel filter bag support nets, etc. The filtrate flows into the filter bags from the side inlet pipe of the filter housing. The filter bags are installed inside the reinforced net baskets. Liquid penetrates through the filter bags of the required precision grade to obtain qualified filtrate, while impurity particles are trapped inside the filter bags. Filtration consumes virtually no material.
Application Industries
Applicable Industries: Water treatment, paper making, fine chemicals, automotive, machining, petrochemical, coatings, food & beverage, electronics, etc.
Applicable Liquid Types: Wide applicability, various liquids containing trace impurities
Main Filtration Function: Removing particles of various sizes, purifying liquids, protecting key equipment
Filtration Type: Particle filtration, manual periodic filter bag replacement
Parameters

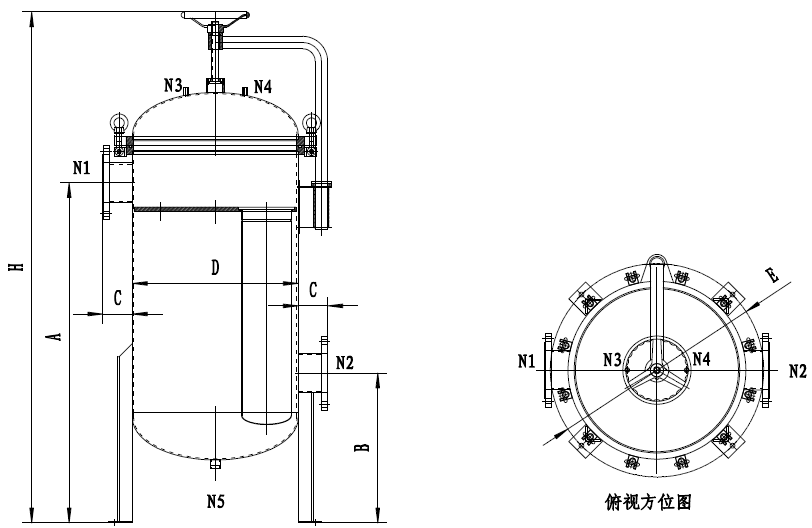

Model	Cylinder Dia. D	Inlet Ht. A	Outlet Ht. B	Inlet/Outlet Length C	Total Length H mm	Inlet/Outlet N1/N2	Pressure Gauge N3/N4	Drain N5	Mounting Size E	Ref. Flow (m³/h)	Filter No.	Filter Area ㎡
JQDB-2	Ø400	1080	380	80	1600	DN65	G1/4"	G1/2"	Ø530	60	2#×2	1
JQDB-3	Ø450	1080	400	100	1610	DN80	G1/4"	G1/2"	Ø580	90	2#×3	1.5
JQDB-4	Ø500	1150	450	100	1720	DN100	G1/4"	G1/2"	Ø630	120	2#×4	2
JQDB-5	Ø550	1150	480	120	1730	DN125	G1/4"	G1/2"	Ø680	150	2#×5	2.5
JQDB-6	Ø600	1180	520	120	1800	DN150	G1/4"	G1/2"	Ø780	180	2#×6	3
JQDB-7	Ø650	1180	580	150	1900	DN150	G1/4"	G1/2"	Ø880	220	2#×7	3.5
JQDB-8	Ø750	1280	650	150	2030	DN200	G1/4"	G1/2"	Ø930	240	2#×8	4
JQDB-10	Ø850	1300	650	150	2100	DN200	G1/4"	G1/2"	Ø1030	300	2#×10	5
JQDB-12	Ø900	1350	650	150	2180	DN200	G1/4"	G1/2"	Ø1080	360	2#×12	6
JQDB-14	Ø950	1350	700	150	2180	DN200	G1/4"	G1/2"	Ø1120	420	2#×14	7

Dimensions are approximate values, for reference only. Due to continuous technical improvements, changes may occur without prior notice. Actual data at the time of order shall prevail. Precise dimensions can be provided upon request during installation.


Parameter	Value
Filtration Precision	0.5–1700 μm (depending on filter bag grade)
Design Pressure	0.6–1.6 MPa
Max Design Temperature	0–100°C (depending on seal and filter bag material)
Max Differential Pressure	2.4 bar
Replacement Differential Pressure	1.0 bar
Filter Housing Material	304, 316L, Carbon Steel
Gasket Material	NBR (standard), Silicone, FKM Viton
Surface Finish	Sandblasting, Polishing
